Highly Efficient Anti Drone System 9000MHz With Electromagnetic Suppression Technology

Model Number : JDY-900P

Certification : Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Place of Origin : China

MOQ : 1

Price : ＄44670

Payment Terms : T/T,L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability : 200 per month

Delivery Time : 30 days

Packaging Details : Flight Case

Product Name : Jdy-900(P) Anti-Uav Single-Station Defense System

Core Tech : Passive Detection, Wideband Scanning

Detection Freq : 300MHz~6000MHz; 300MHz~9000MHz (Partial)

Key Detection Bands : 2.4G/5.8g/800MHz/900MHz/1.4G/5.2GHz

Detection Dist : Jdy-900:1~5km; Jdy-900p:1~8km

Positioning Accuracy : ≤10m (Uav); ≤5m (Operator)

Jamming Bands : 2.4G/5.8g/900MHz/GPS/Bds/Glonass/Galileo

Jamming Dist : 1~3km (Depends on Electromagnetic Environment)

Jamming Method : 4-Sector Directional/Omnidirectional Strike

Transmission Power : 360W; 1500W (Partial Versions)

Power Supply : AC220V→DC24V; DC27V (Partial)

Weight : ≤20.0kg

Operating Temp : -35ºC~50ºC (Built-in Radiator)

Protection Level : IP66; IP65 (Partial)

Alarm Mode : Audible/Visual Alarm

Contact Now

JDY-900(P) Anti-Drone Single-Station Defense System
Product Introduction

The JDY-900(P) is a single-station drone detection and countermeasure device that utilizes passive detection combined with electromagnetic suppression technology to effectively counter illegal drone intrusions, forming a complete "detection-identification-countermeasure" chain.

FAQ
  • Q1: What is the system's protection range?
    A: The JDY-900 supports detection from 1 to 5 kilometers, while the JDY-900P reaches up to 8 kilometers and a countermeasure range of 3 kilometers.
  • Q2: Can it identify drone models?
    A: The system supports detection of mainstream drones such as DJI, Docom, and Haoxiang, as well as custom-made drones, and is compatible with the O2/O3/O4 flight control protocols.
  • Q3: Is installation complicated?

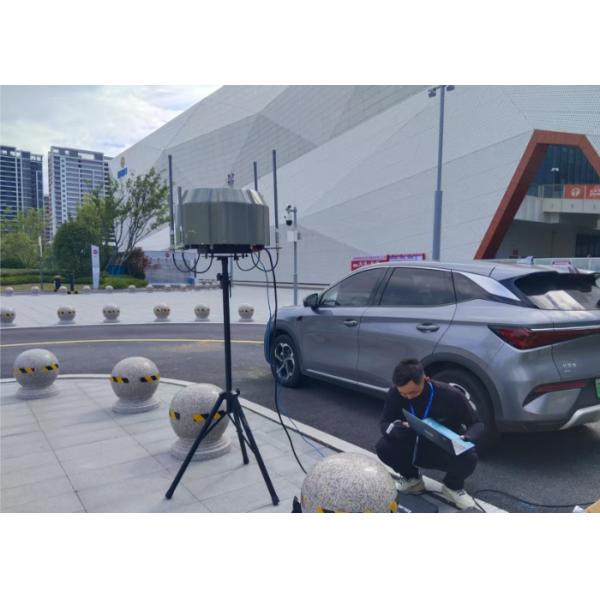

    A: It supports fixed installation, tripod deployment, and vehicle-mounted operation, and can be completed in minutes.
  • Q4: Is real-time human oversight required?
    A: The device has an unmanned operation function and can automatically conduct strikes based on intrusion conditions.
  • Q5: Can it be networked with other devices?
    A: It supports LAN and 4G/5G networking, and can be expanded into a multi-site intelligent prevention and control network.
Application Scenarios
  • Public Security: Government buildings, courtrooms, and conference centers to prevent drones from secretly filming or disrupting operations.
  • Transportation Hubs: Airports and railway lines to ensure transportation safety.
  • Temporary Security: Large concerts and conferences require rapid deployment for immediate results.
  • Industrial Parks: Prevent drones from stealing images or disrupting production.

With its powerful detection and countermeasure capabilities, the JDY-900(P) provides users with a one-click low-altitude protection solution.

Product Name Jdy-900(P) Anti-UAV Single-Station Defense System
Core Technology Passive Detection, Broadband Scanning
Detection Frequency 300MHz to 6000MHz; 300MHz to 9000MHz (select models)
Key Detection Frequency Bands 2.4GHz / 5.8GHz / 800MHz / 900MHz / 1.4GHz / 5.2GHz
Detection Range Jdy-900: 1 to 5km; Jdy-900p: 1 to 8km
Positioning Accuracy ≤10m (UAV); ≤5m (operator)
Interference Frequency Bands 2.4GHz / 5.8GHz / 900MHz / GPS / Beidou / Glonass / Galileo
Interference Range 1-3 km (depending on electromagnetic environment)
Interference Mode Four-sector directional/omnidirectional strike
Transmit Power 360W; 1500W (select models)
